The Jury Evaluator of the FIMA 2018 Technical Novelties Contest, decides to GRANT,
in the category of "Tractors and Self-propelled Machines and energy",
The Denomination:
TECHNICAL NOVELTY for the "Engagement of the lower arms of the trip rail Fendt VarioPull"
presented by AGCO IBERIA, S.A. - FENDT.
Optimization of weight distribution between the front and rear axles by longitudinal displacement of the
rear hitch. For this purpose, a telescopic device with hydro-mechanical locking is used, which is attached
to the body of the tractor, in which the lower hooks are placed, replacing those of the three-point
hitch.

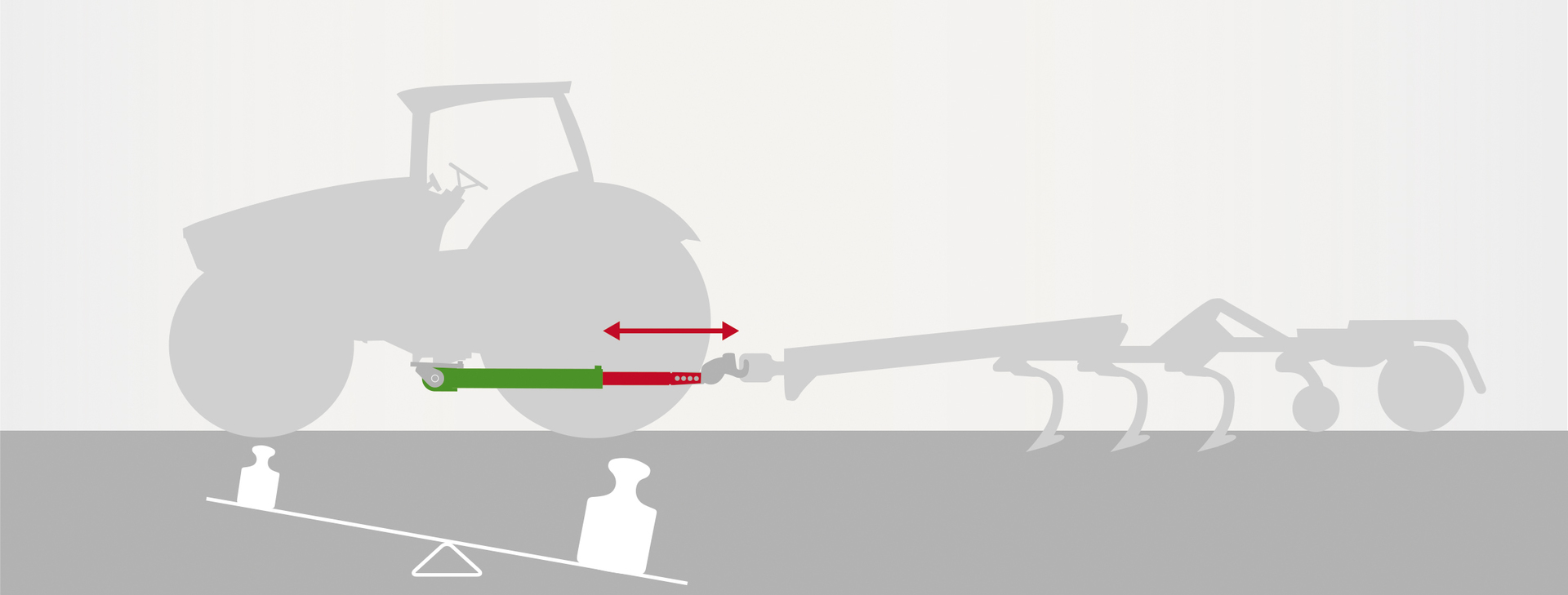

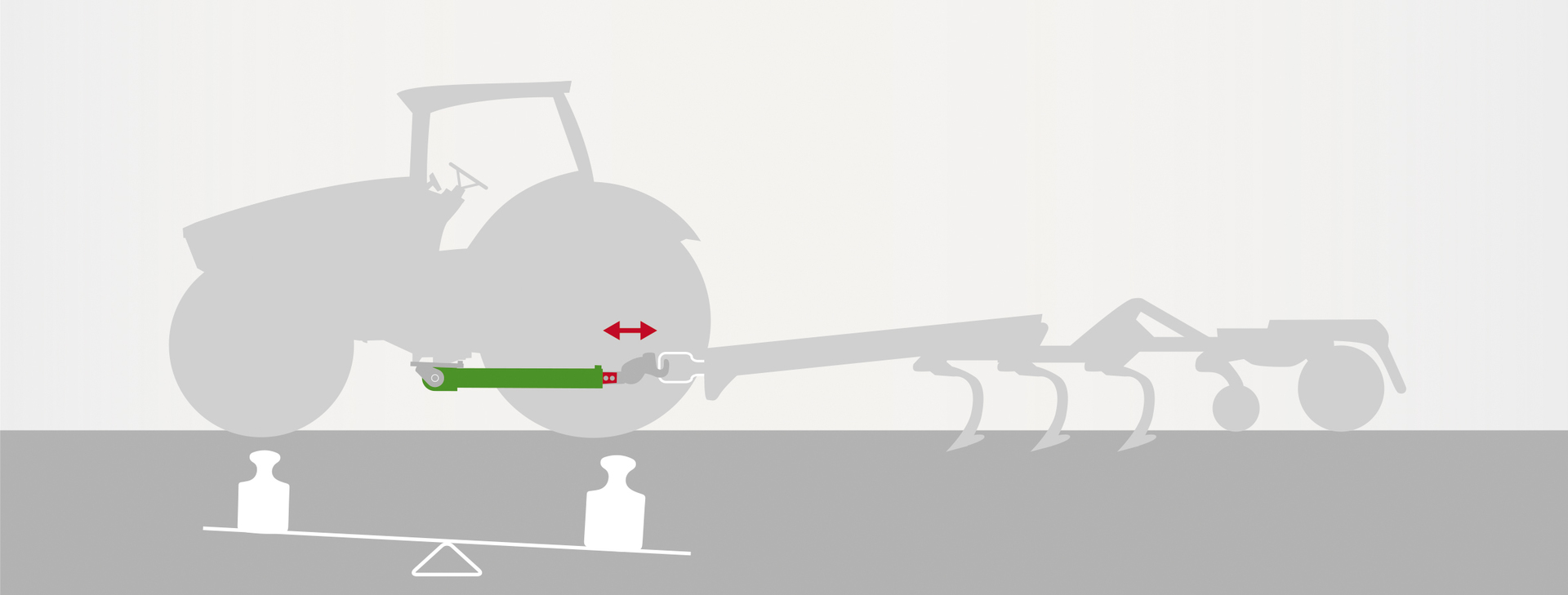

This allows to approach or separate the attachment point of the implement to the rear axle of the tractor
to achieve the most favorable longitudinal balance, increasing or decreasing the load on the front axle
to improve traction. The longitudinal displacement of the drawbar allows to transfer the weight of

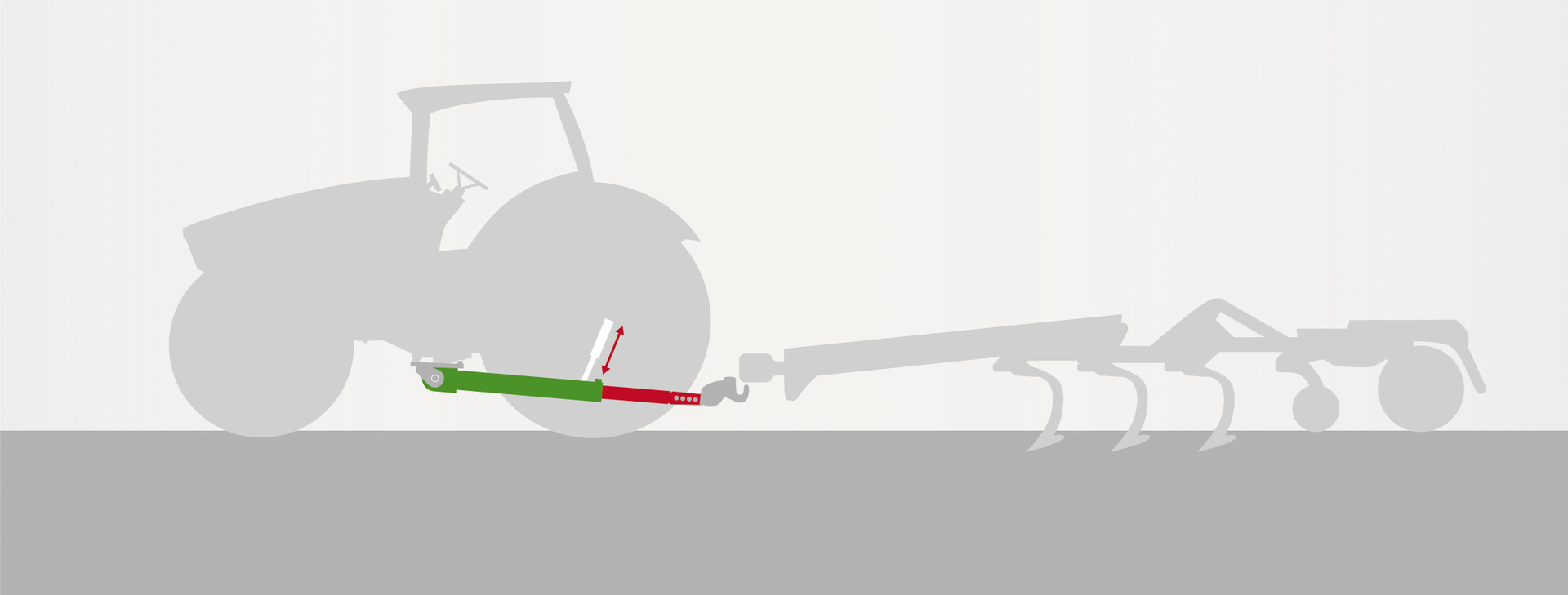

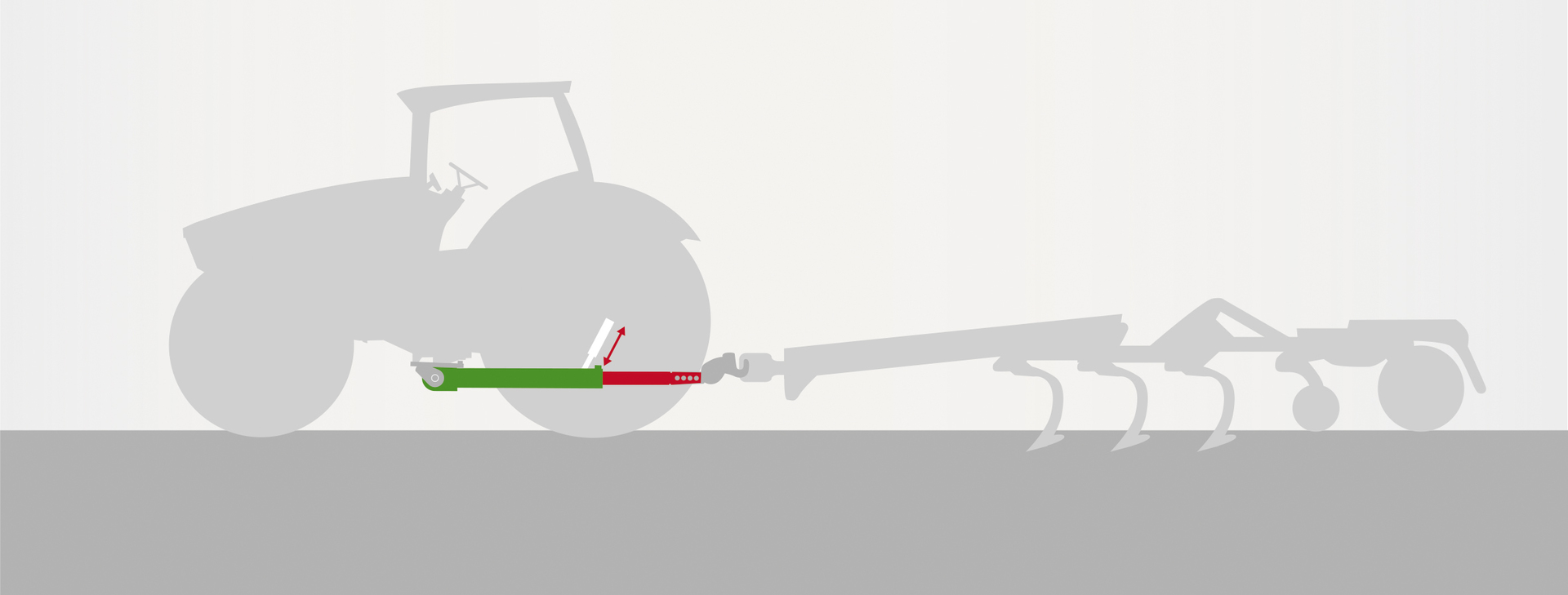

the rear axle to the front axle. The drawbar also moves vertically, which facilitates the attachment of
the implements.
